Evolabel etiketteermachines
Print & apply
User-Friendly Operation
Large color touchscreen, clear notifications, and straight label path make Evolabel print-and-apply systems easy to operate, change labels, and perform basic maintenance.
Compact Line Integration
Compact design with stable, flexible mounting supports and open communication protocol ensures Evolabel systems fit easily into existing packaging lines mechanically and via software.
Precise Label Application

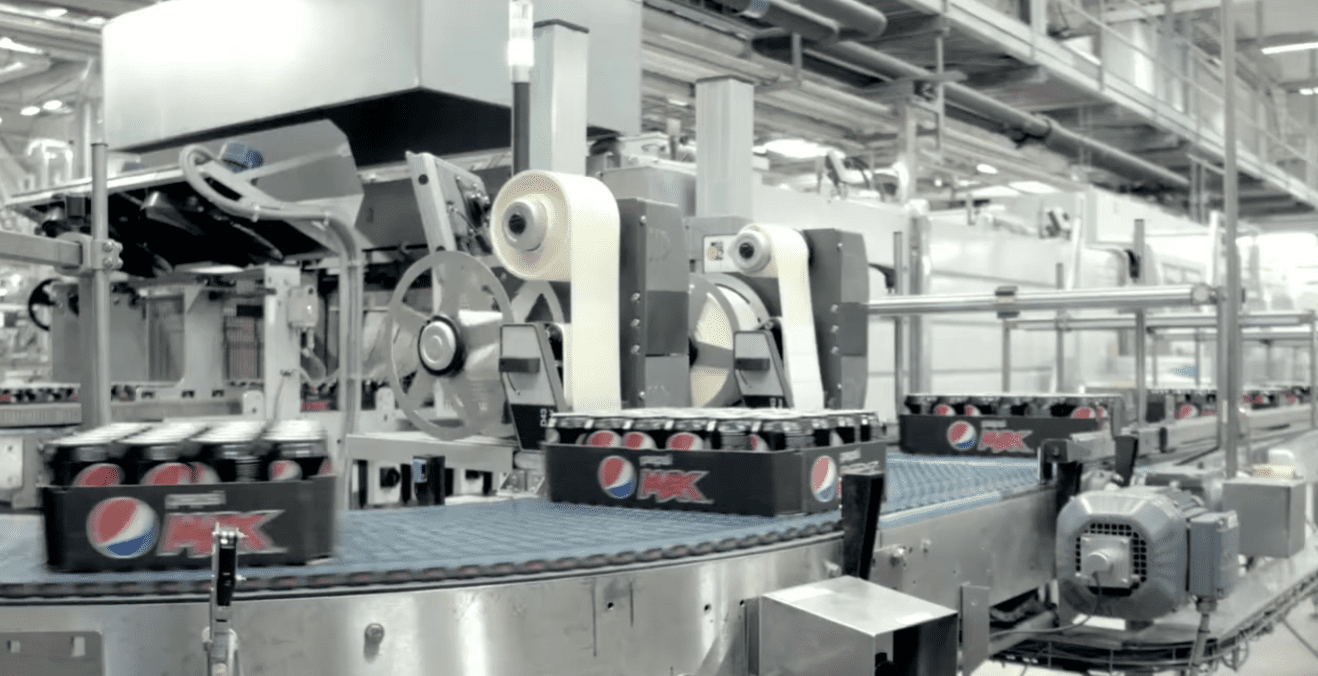

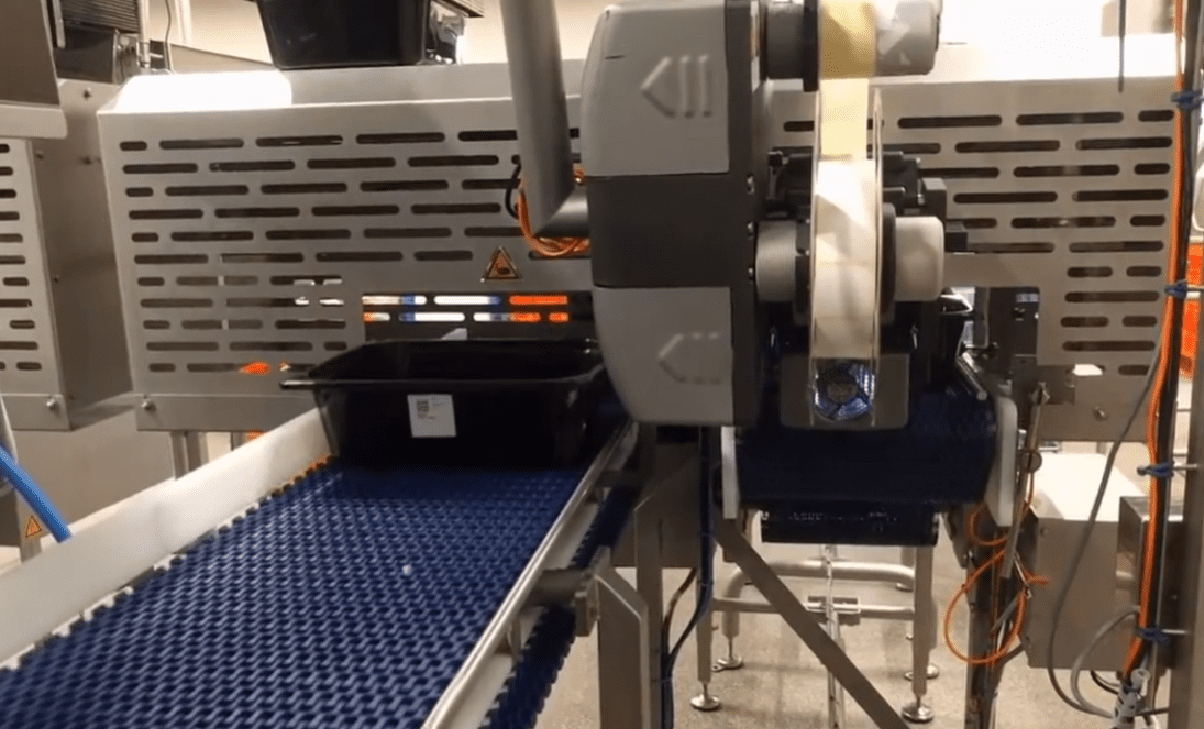

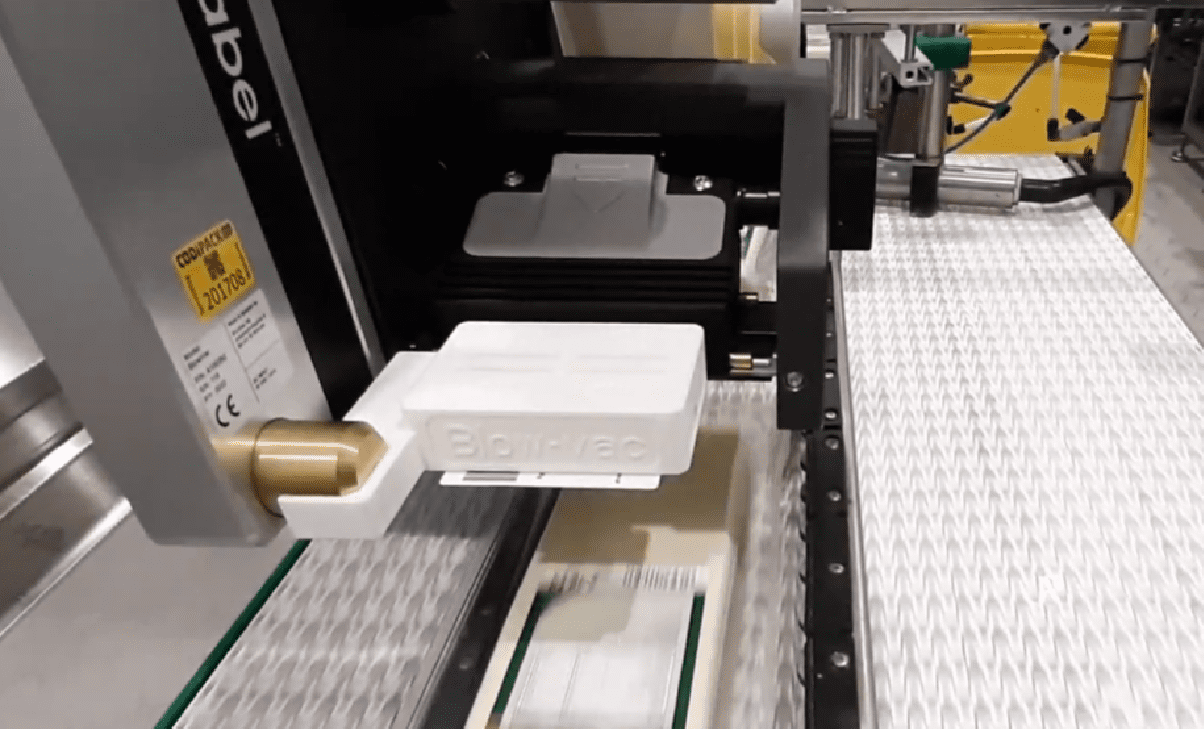

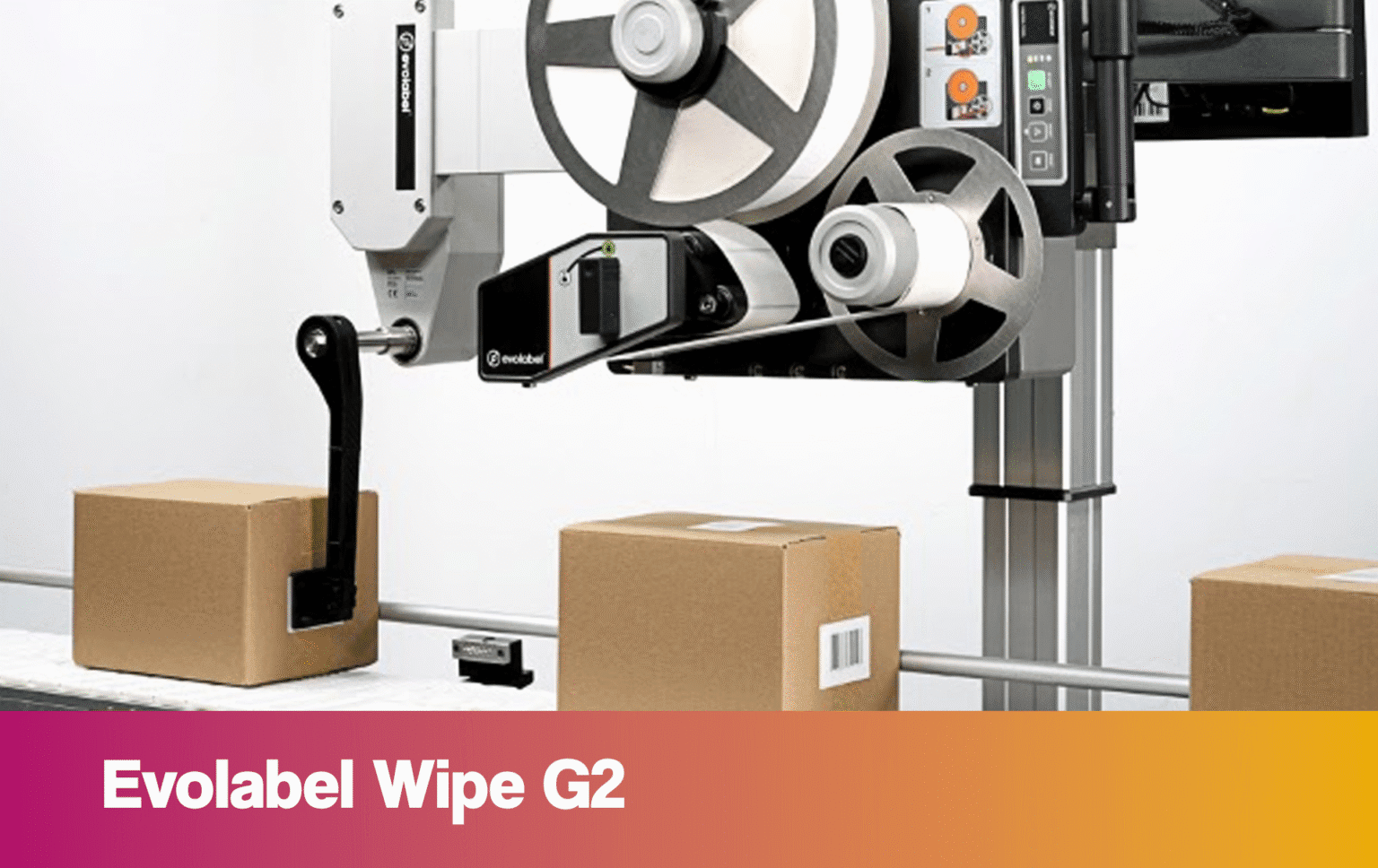

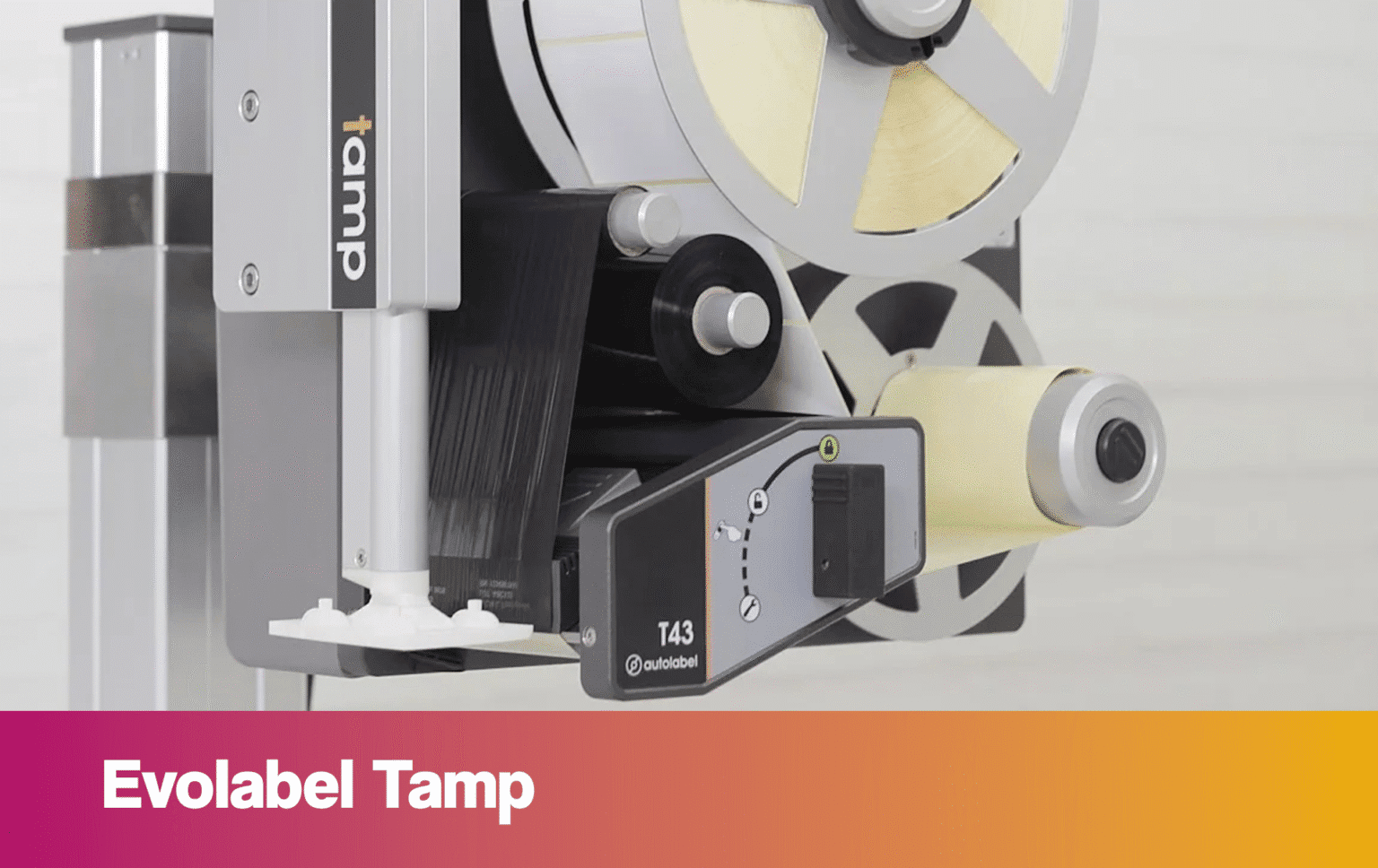

Pneumatic and electric tamp-and-wipe applicators place labels with millimeter precision at high line speeds, even with varying product heights and formats.
Product information
Evolabel labeling systems are advanced print-and-apply solutions that automatically print and apply variable labels to products, boxes and pallets in industrial production lines. They solve traceability issues by consistently and error-free applying barcodes, batch numbers, expiration dates, contents and logistics information, with support for GS1 standards and high line speeds. With Evolabel systems, labeling is possible for primary packaging, cartons and pallets.
You can choose from three different printers:
D43: 4 Inch direct thermal printer with 300 dpi
T43: 4 Inch thermal transfer printer with 300 dpi
T63: 6 Inch thermal transfer printer with 300 dpi
Different applicators enable flexible configurations for various surfaces and speeds. For the optimal setup per application, from product to end-of-line pallet labeling, we recommend contacting our sales team; they will work with you to determine the best solution. Evolabel labeling systems are supplied and integrated by Codipack as a partner solution.
Show more
Specifications
Print technology: direct thermal and thermal transfer, depending on the selected Evolabel model.

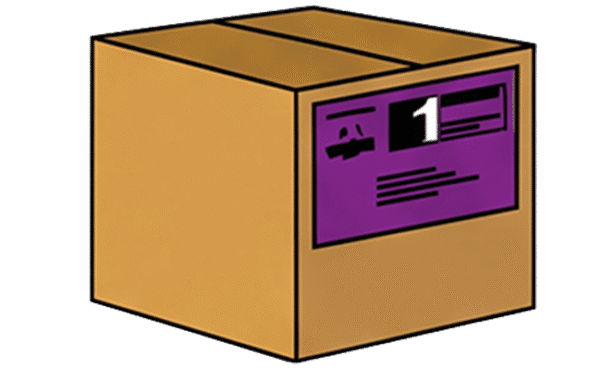

Typical applications: labeling of individual products, boxes/cartons and pallets with barcodes, batch data, expiration date and weight.
Supported label formats (example D-43): approx. 30 × 20 mm to 118 × 240 mm, depending on the applicator.
Maximum print width (example D-43): up to approx. 108 mm; maximum print length up to approx. 240 mm.
Resolution: typically 300 dpi for sharp barcodes and text.
Print and labeling speed: printers up to approx. 160–200 mm/s; applicators up to approx. 120 labels per minute or up to 80 m/min line speed, depending on the model.

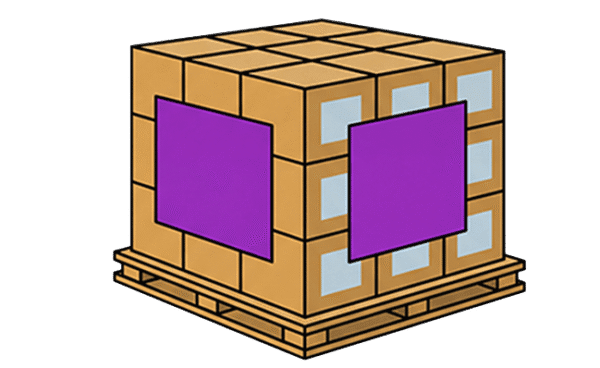

Pallet labeling: solutions for 1, 2 or 3 sides with GS1-compliant A5 pallet labels and integrated barcode verification.
Communication & integration: support for Ethernet/LAN, USB, RS-232 and other field interfaces, plus Evolabel communication protocol for easy software integration.
Compact design: small footprint and flexible mounting kits for integration into existing packaging lines or in limited space.
Downloads
Frequently asked questions
Below you will find answers to frequently asked questions about this product, based on publicly available and verifiable information.
What exactly do Evolabel print‑&‑apply labeling systems do?
Evolabel systems print labels including barcodes, expiration dates and batch numbers and automatically apply them to products, boxes or pallets in automated production lines.
For which applications and sectors are Evolabel systems suitable?
They are used in production and packaging environments where high throughput and traceability are important, such as food, non-food, logistics and pallet shipping, for product, box and pallet labeling.
Which printers are available for Evolabel systems?
There is a choice of the D43 (4 inch direct thermal, 300 dpi), T43 (4 inch thermal transfer, 300 dpi) and T63 (6 inch thermal transfer, 300 dpi) printers.
How are Evolabel labeling systems integrated into existing production lines?
The systems provide mechanical integration via compact, flexible brackets and software integration via Ethernet/LAN, USB and serial interfaces, complemented by specific communication protocols for connection with higher-level systems.
