Evolabel Wipe/Wipe90 G2
Print & apply
Flexible rotation for all positions
Stepper motor arm rotates up to 192° for front, side, top, corner wrap, or adjacent side labeling.
Safe obstacle detection
Tactile arm automatically detects products and obstacles for safe operation on light items.
No daily calibration
Fully automatic with patented pads for reliable performance without adjustments.
Product information
The Evolabel Wipe G2 & Wipe90 G2 Applicators from Codipack apply labels quickly and precisely to front, rear, top, side, or corner wrap positions, ideal for boxes and round surfaces.
Wipe G2: Rotates in line with print direction for long labels (>300 mm).
Wipe90 G2: Rotates 90° perpendicular for wide/short labels and adjacent sides.
Both use vacuum pads that convert compressed air into local vacuum for firm grip; suitable for labels up to 176×240 mm at high speed up to 80/min with arm lengths 125-400 mm. Compatible with Evolabel printers D43, T43, T63 via two screws, air hose, and EXT1 cable; external photosensor triggers via printer software. Perfect for logistics and production with optional motorized stand. Codipack offers these applicators for efficient, safe integration into your systems.
Show more
Specifications

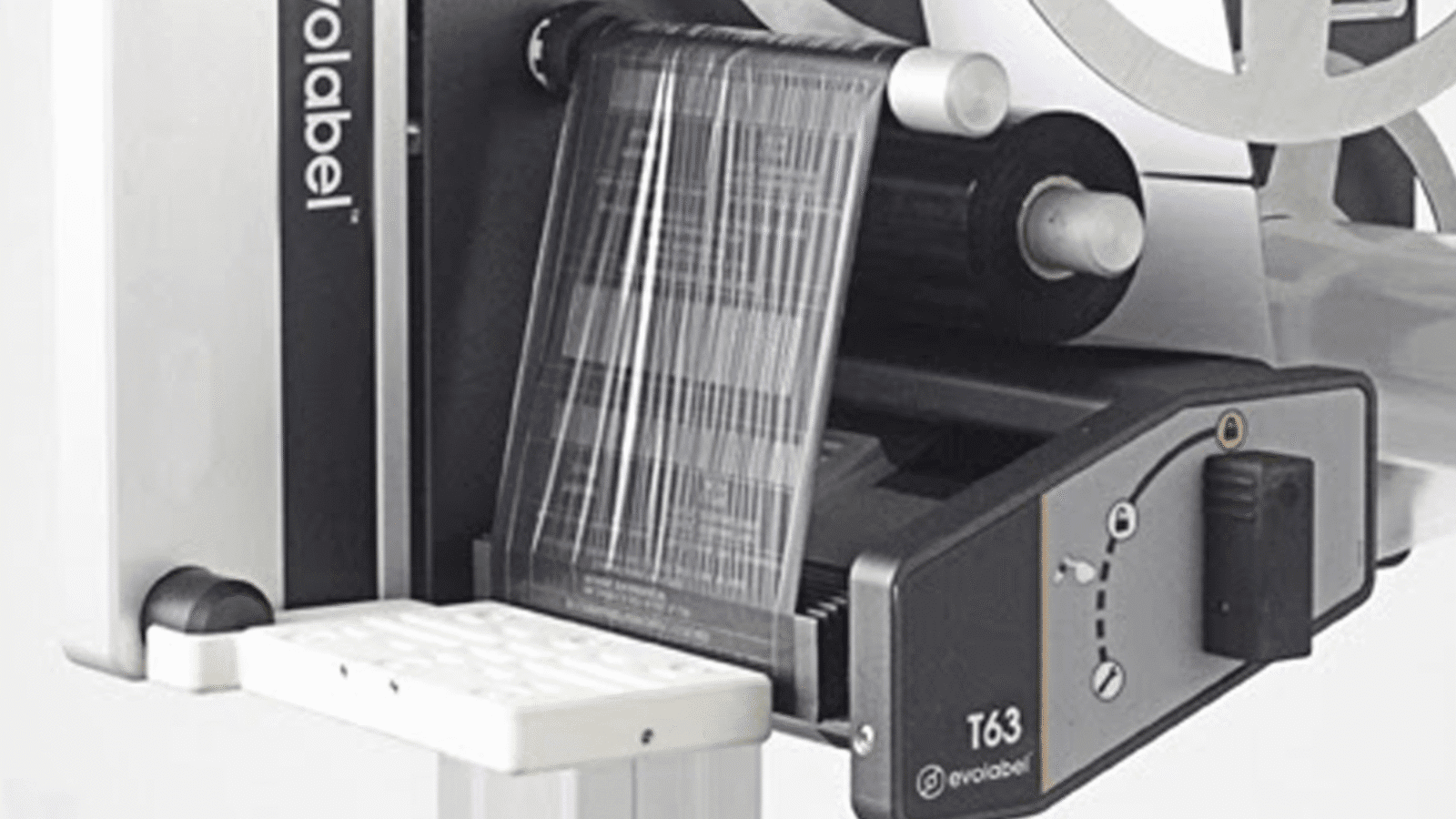

Compatible printer models: D43, T43, T63.
Minimum label size: 30×20 mm (D43/T43), 115×20 mm (T63).
Maximum label size: 118×240 mm (D43/T43), 176×240 mm (T63).
Maximum apply angle: 192°.
Arm lengths: 125, 200, 250, 350, 400 mm.
Label technology: Stepper motor with encoder and vacuum pads.
Maximum speed: Up to 80 labels per minute.
Air supply: 6 bar clean and dry.
Communication: EXT1 (RS-232).
Power supply: 24 VDC / 4.0 A.
Rotation difference: Wipe G2 inline with print, Wipe90 G2 90° perpendicular.
Applications: Front/side/top/corner/2-side labeling.
Downloads
Frequently asked questions
Coding and labeling is our core business. We have 5000 customers in very diverse sectors: from the cheese shop around the corner to the multinational.
What is the difference between Wipe G2 and Wipe90 G2?
Wipe G2 rotates inline with print for long labels, Wipe90 G2 rotates 90° perpendicular for wide labels and adjacent sides.
How do they detect obstacles?
Encoder-driven arm senses products and obstacles, automatically stopping movement for safety.
Are daily adjustments needed?
No, both are fully automatic without calibration.
What mounting options are available?
Standard and alternative mounting for Wipe90 G2 (L/R conveyor), plus motor invert option.
