Labeling systems
Type
Subtype
BRAND

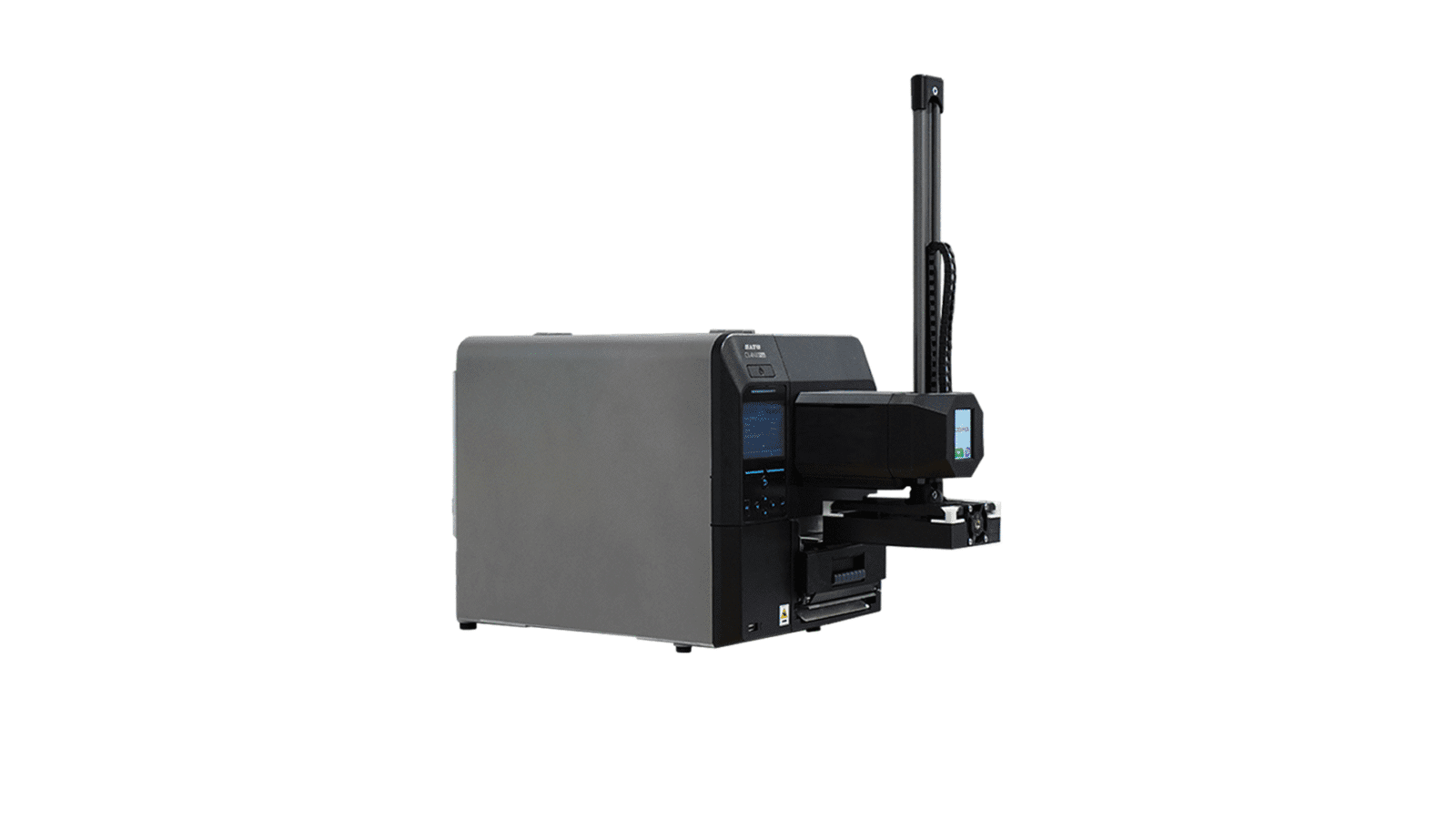

Evolabel labeling systems
User-Friendly Operation
Large color touchscreen, clear notifications, and straight label path make Evolabel print-and-apply systems easy to operate, change labels, and perform basic maintenance.
Compact Line Integration
Compact design with stable, flexible mounting supports and open communication protocol ensures Evolabel systems fit easily into existing packaging lines mechanically and via software.
Precise Label Application
Pneumatic and electric tamp-and-wipe applicators place labels with millimeter precision at high line speeds, even with varying product heights and formats.
Labeling Down to -30°C
Extreme Temperature Reliability
Reliably operates from -30°C to +40°C for precise labeling in freezing conditions.
Compact Space-Saving Design
Up to 50% smaller footprint, without bulky heating cabinets.
Intelligent Adaptation Software
Automatically adjusts to environmental conditions for optimal performance.
ALTech labeling systems
High-Speed Precision
ALritma T achieves print and application speeds up to 60 m/min with IP55 housing for accurate positioning.
Flexible Loop Arm Technology
ALcode and ALritma T print and apply independently and simultaneously for double speed without air.
Intuitive Touchscreen Control
Stores up to 40 formats for fast changeovers without mechanical adjustments.
Evolabel FlexWipe
Compact Design
Compact solution for pallet labeling in heavy industrial environments.
Multi-Side Flexibility
Labels all three pallet sides without stopping via servo-controlled rotations.
Enhanced Safety
Rotatable mounting and tactile arm prevent pinching hazards during operation.
ALtech ALcode P
Multi-Side Labeling
Prints and applies A5 SSCC labels on two or three pallet sides according to GS1 standards.
High Reliability
Tri-axial motion system ensures accurate positioning on varying pallets.
Flexible Pallet Height
Reaches up to 2200 mm for labeling tall pallets without adjustments.
IQ LABEL
Fully electric design
Operates without compressed air thanks to electric vacuum generator and efficient actuators.
Maintenance-free operation
Uses linear shaft and high-quality components, optimized for textile industry.
Intuitive touchscreen interface
Simple control with minimal training and fast changeovers without tools.

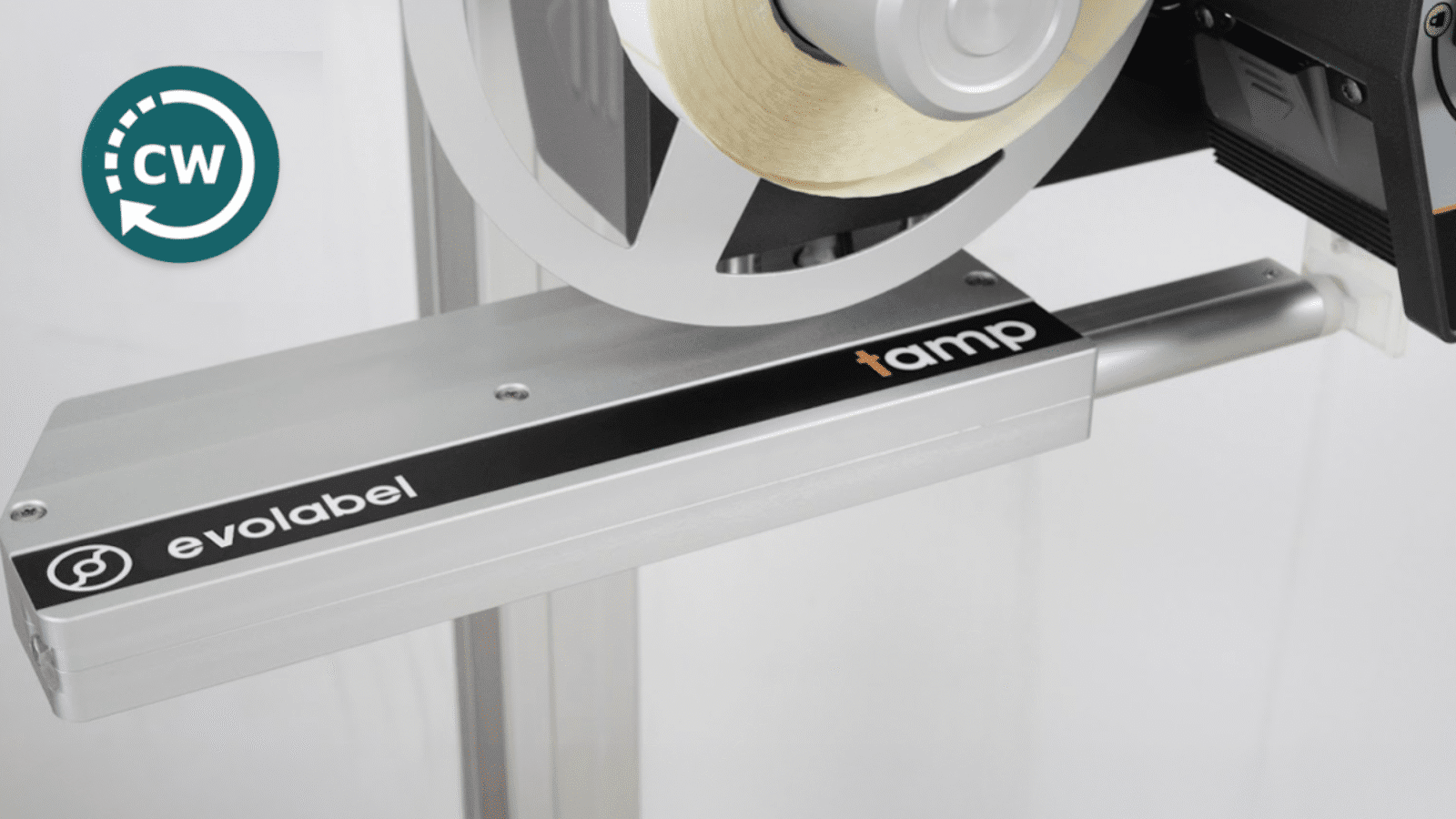

Evolabel Tamp
Precision top and side labeling
Ideal for accurate label positioning from above or the side at distances up to 70 mm.
Fast pneumatic operation
Achieves up to 120 labels per minute thanks to low weight and pneumatic solution.
Plug-and-play integration
Standard mechanical, electrical, and pneumatic interface with Evolabel printers.
Evolabel eTamp
Flexible stroke length up to 850 mm
Available in 5 models for labeling at varying heights without manual adjustments.
Stepper motor driven
Electric drive reduces weight, increases flexibility, and ensures automatic return upon obstacles.
Safe pallet labeling
Long reach and precise control suitable for single-sided or multi-sided labeling of pallets and boxes.
Evolabel QuickTamp
High-speed linear motion
Stepper motor with carbon fiber tamp rod for fast, precise top and side labeling.
No daily calibration
Fully automatic without adjustments, ideal for continuous production.
Variable stroke lengths
Models up to 1000 mm reach for boxes of various heights on lines up to 80 m/min.
Evolabel Belt
Precise vacuum belt transport
Vacuum belt runs synchronously with conveyor for ±0.5 mm positioning accuracy, even on lightweight products.
Compact bottom labeling
Combines with D43 printer for bottom labeling with small footprint and up to 120 packages per minute.
Flexible label formats
Handles labels from 30×30 mm to 118×150 mm without adjustments.
Evolabel BlowVac
Contactless labeling up to 200 mm
Patented applicator plate with vacuum and blow nozzle for safe, accurate placement without physical contact.
Large labels up to 150×100 mm
Processes extra-large formats suitable for T63 printer in print-and-apply systems.
No moving parts
Pneumatic operation without fans or mechanics, meets strict safety standards.
Evolabel Wipe/Wipe90 G2
Flexible rotation for all positions
Stepper motor arm rotates up to 192° for front, side, top, corner wrap, or adjacent side labeling.
Safe obstacle detection
Tactile arm automatically detects products and obstacles for safe operation on light items.
No daily calibration
Fully automatic with patented pads for reliable performance without adjustments.
