Print & Apply
High-Speed Precision
ALritma T achieves print and application speeds up to 60 m/min with IP55 housing for accurate positioning.
Flexible Loop Arm Technology
ALcode and ALritma T print and apply independently and simultaneously for double speed without air.
Intuitive Touchscreen Control
Stores up to 40 formats for fast changeovers without mechanical adjustments.
Product information
ALtech ALcode and ALritma T print & apply systems, supplied by Codipack as a partner solution and not developed or manufactured by Codipack itself, automate real-time printing and application of variable data such as barcodes, expiration dates and RFID on boxes and packaging in high-speed production lines. They solve traceability issues by simultaneous printing and application with minimal downtime and high reliability.

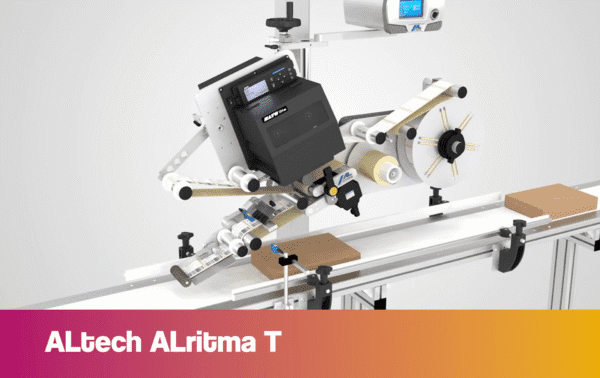

The ALritma T uses a swinging loop arm for up to 250+ labels/minute (up to 400 mm/sec print), while ALcode offers flexible applicators such as blow and tamp for various positions on stationary or moving products. Compatible with SATO/Zebra printers, PLC integration and direct thermal technology, ideal for industrial environments with storage of 40 formats via multilingual touchscreen. These systems also function as standalone applicators without a printer.
Show more
Specifications
ALritma T print speed: up to 400 mm/sec (16″/sec).
ALritma T application speed: up to 60 m/min (standard 40–50 m/min).
ALcode print width: 4 or 6 inch, up to 300 mm/sec.
Applicators: peeler bar, blow unit, tamp, corner.
Housing: IP55 industrial protection.
Memory: storage of up to 40 formats.
Label roll Ø: 300 mm.
Power: 400 W, 240V 50Hz.
Print technology: direct thermal/thermal transfer, SATO/Zebra compatible.
No compressed air required, standalone mode possible.
Downloads
Frequently asked questions
Below you will find answers to frequently asked questions about this product, based on publicly available and verifiable information.
Which printers does the system support?
SATO or Zebra modules for variable data and RFID.
What distinguishes ALritma T from ALcode?
ALritma T prints and applies simultaneously up to 250+ labels/min via loop arm, twice as fast as traditional ALcode.
What speeds does ALritma T offer?
Up to 400 mm/sec print and 60 m/min application for high-speed lines.
Are compressed air and adjustments required?
No, no air required and no manual adjustments for label formats.
