Home Products T63 Thermal Transfer printer

T63 Thermal Transfer printer

  • Also suitable for pallet labelling

  • Thermal transfer and direct thermal

With a print width of up to 162 mm, the Evolabel T63 thermal transfer label printer is suitable for pallet and box labeling, where large, data-intensive labels are often used.

The design of the Evolabel printer comes into its own in the T63 model. The aluminum frame is made in one piece for perfect alignment of the wide label and transfer rollers, print head, etc. This eliminates the need for modifications to the printer. This eliminates the need to modify existing machines and ensures high print quality.

Evolabel T63 palletlabeling

PALLET LABELING

The T63 prints labels up to A5 size and is GS1 compliant for pallet labeling. Evolabel offers unique and secure solutions for pallet labeling on one, two or three sides. The Evolabel T63 integrates both thermal transfer and direct thermal technology.

The Evolabel T63 printer works with the following applicators

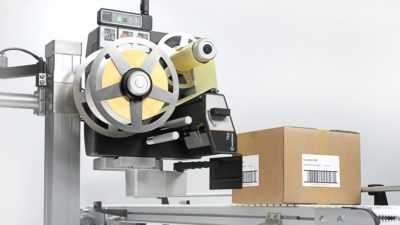

Blow Vac, Belt, Tamp, eTamp, Wipe G2, Wipe90 G2, QuickTamp, FlexWipe palletlabeling systeem

Technical specifications

  • Printing technology: thermal transfer (can also process thermal labels directly)
  • Maximum print width: 162 mm
  • Maximum print length: 350 mm
  • Label size (L x W): 80 x 20 mm to 178 x 400 mm (applicator specific)
  • Maximum media width: 180 mm
  • Printing area: 100% thanks to the automatic rewinding of each label
  • Resolution: 300 dpi
  • Printing speed: Standard printing speed 160 mm / s (max. 200 mm / s)
  • Fonts: Trout type, Unicode
  • Barcodes: EAN-13, EAN-8, CODE128, GS1-128, GS1-Databar (+ Exp, Limit, Stack, Stack Omni, Exp Stack)
  • Interleaved 2 or 5, UPCA
  • 2D Codes: Datamatrix, PDF-417, QR code
  • Outside dimensions, excluding applicator (LxWxH): 440x420x485 mm
  • Label roll outer diameter (max.): 12″ / 300 mm
  • Label roll core diameter: 3″ / 76 mm
  • Lintrol outer diameter (max.): 85 mm
  • Lintrol core diameter: 1″ / 25 mm
  • Communication: Ethernet / LAN, USB, CANopen, RS-232
  • Power supply : 110/240 VAC, 50/60 Hz
