• Maximum 300 dpi

  • Maximum 305 mm/second

  • Robust built-in printer for your labeling system

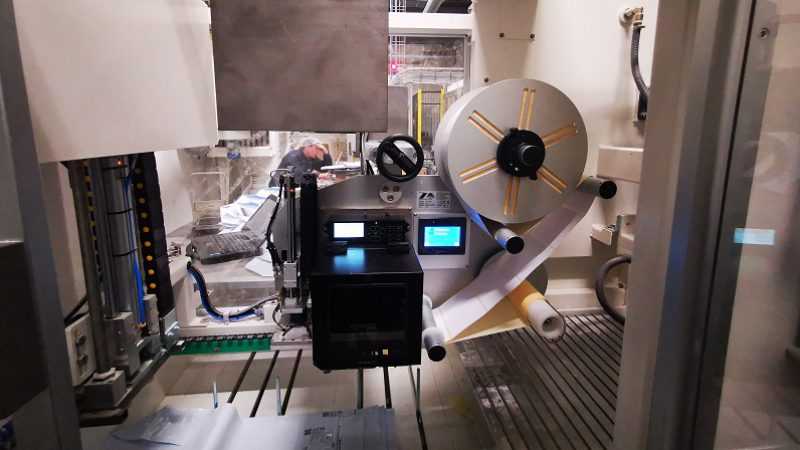

The Zebra ZE500 built-in printer (print engine) is thoughtfully designed.

  • Innovative design
  • User friendly
  • Easy to integrate
  • Service oriented
  • Minimal downtime of the production line

Specifications

  • Print method Direct Thermal | Thermal Transfer
  • Max. print width ZE500-4: 104mm | ZE500-6: 168mm
  • Print resolution 200dpi | 300dpi
  • Print speed ZE500-4: 305mm/s | ZE500-6 (200dpi): 305mm/s | ZE500-6 (300dpi): 254mm/s
  • Dimensions ZE500-4: 245mm W x 379mm D x 300mm H | ZE500-6: 245mm W x 438mm D x 300mm H
  • Weight ZE500-4: 15.4kg | ZE500-6: 17.3kg
