Zebra DS3678-HD
Barcode scanners
High-density barcode scanning
Optimizes fast capture of small and dense 1D/2D codes.
Wireless with long battery life
Bluetooth 4.0 with 100,000+ scans per charge.
Ultra-rugged IP65/67 construction
Resistant to 2.4 m drops and extreme temperatures.
Product information
The Zebra DS3678-HD is a cordless ultra-rugged handheld barcode scanner, specialized in scanning high density 1D and 2D barcodes on components and labels. Codipack offers this scanner for challenging production environments such as electronics and medical equipment manufacturing, where small codes (down to 3 mil) must be read reliably, even damaged or dirty.
It solves problems with inaccessible small barcodes through advanced imager technology and multi-code capture up to 20 codes at once. Suitable for dusty, humid, and extreme cooling/heating conditions with IP65/67 sealing.
Compatible with Bluetooth Class 1, supports HID/SPP profiles for pairing with PCs, terminals, and mobile devices. Includes PowerPrecision+ battery with health tracking and DataCapture DNA for management. Codipack supplies the DS3678-HD for productivity gains in industries.
Show more
Specifications
Scanner type: High Density 1D/2D imager.
Connectivity: Bluetooth 4.0 (Class 1, LE).
Battery: 3100 mAh Li-Ion, 100,000+ scans.
Protection rating: IP65 and IP67.
Drop resistance: Multiple drops up to 2.4 m.
Tumble test: 5000 x 1 m.
Image sensor: 1280 x 960 pixels.
Field of view: Horizontal 31°, vertical 23°.
Temperature: -30°C to 50°C.
Interfaces: USB, RS232, Keyboard Wedge.
Feedback: LED, beeper, vibration.
Dimensions: 18.5 x 7.6 x 14.2 cm (cordless).
Frequently asked questions
Coding and labeling is our core business. We have 5000 customers in very diverse sectors: from the local cheese shop to multinationals.
What does the DS3678-HD specialize in?
Scanning high density 1D/2D barcodes.
How long does the battery last?
100,000+ scans per full charge.
Is it suitable for extreme conditions?
Yes, IP65/67 and -30°C to 50°C range.
What wireless technology does it use?
Bluetooth 4.0 with Class 1 range up to 100 m.
Others also viewed

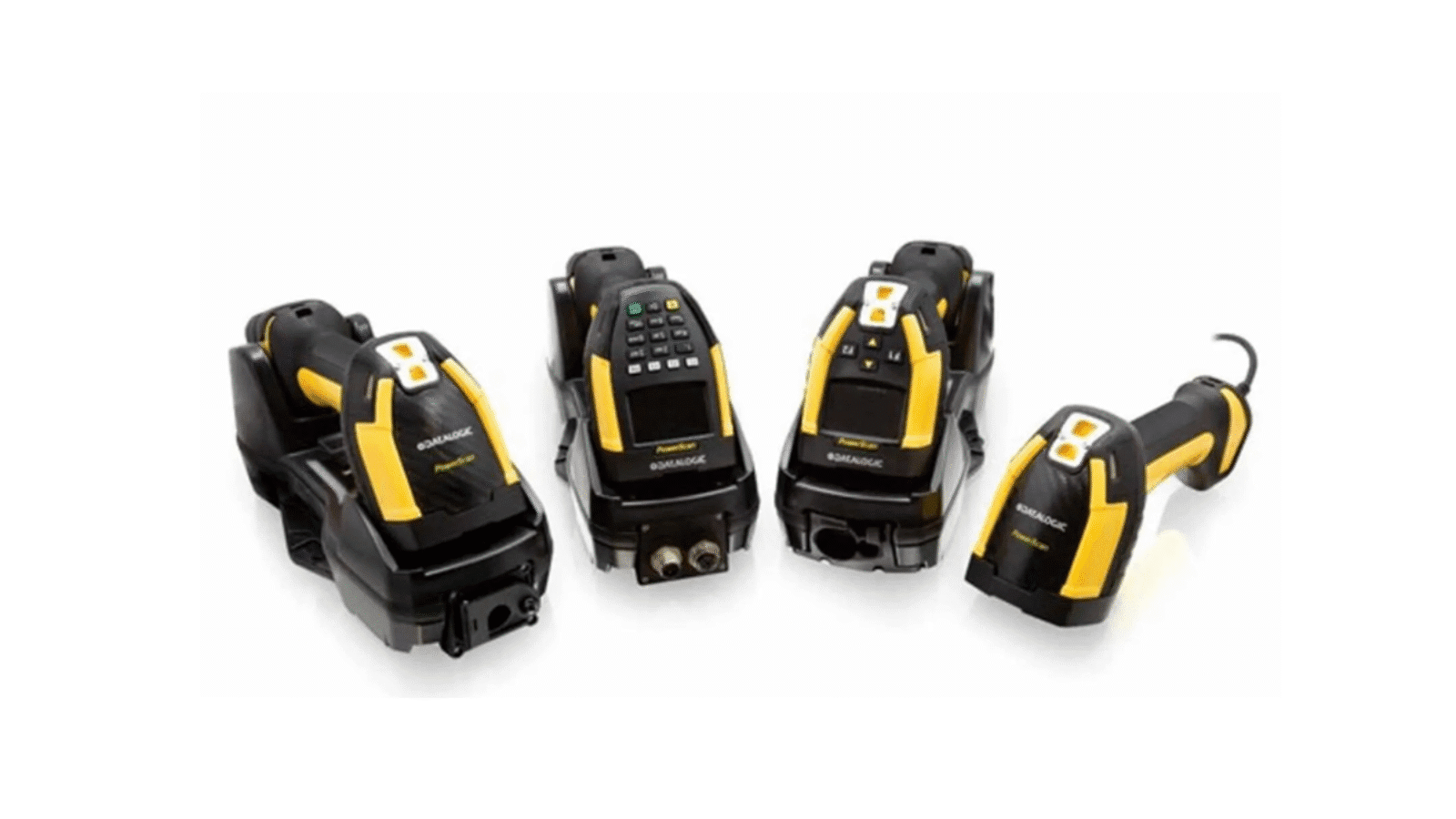

Datalogic PBT9501-AR/PD9501-AR
