Honeywell PM45

Industrial label printers

High print speed
Up to 14 ips (350 mm/s) for efficient high-volume label production.

Multiple resolution options
203, 300, 406, and 600 dpi for diverse label applications.

Extensive connectivity
USB, Ethernet, Wi-Fi, Bluetooth, and RFID support for flexible integration.

Product information

The Honeywell PM45 is a robust industrial barcode printer offered by Codipack for 24/7 label production in manufacturing, logistics, and warehouses. With direct thermal and thermal transfer technology, the printer supports media up to 4.09 inch (104 mm) width with print resolutions from 203 to 600 dpi and speeds up to 14 ips (350 mm/s). Print registration of ±0.5 mm ensures sharp barcodes, text, and images, even on small electronics and medical labels.

The printer handles rolls up to 213 mm diameter with 450 m ribbon capacity and supports cutter, rewinder, and applicator options. USB 2.0, Ethernet 10/100, 802.11a/b/g/n/ac Wi-Fi, Bluetooth 5.0, and WWAN provide flexible connectivity with printer languages such as DPL, IPL, Fingerprint, ZSim2 (ZPL-II), and XML for SAP/Oracle. The full-color touchscreen and Honeywell Printer Edge platform ensure easy operation and cloud integration.

Specifications

Print technology: Direct thermal and thermal transfer.
Print resolution: 203, 300, 406, 600 dpi.
Print speed: 50–350 mm/s (2–14 ips).
Print width: Max. 4.09 inch (104 mm).
Media capacity: 213 mm OD roll.
Ribbon length: 450 m (1476 ft).
Connectivity: USB 2.0, Ethernet 10/100, Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0, WWAN.
Printer languages: DPL, IPL, Fingerprint, ZSim2 (ZPL-II), XML (SAP/Oracle).
Memory: 256 MB RAM, 512 MB Flash.
Media types: Labels, linerless, RFID tags.
Operation: Full-color touchscreen.
Extras: Applicator interface, parallel, industrial I/O, RFID encoder.

Downloads

Frequently asked questions

Coding and labeling are our core business. We have 5,000 customers in widely varying sectors: from the local cheese shop to the multinational.

What are the print speeds of the PM45?

Up to 14 ips (350 mm/s) depending on resolution and label design.

What resolution options does the printer offer?

203, 300, 406, and 600 dpi for both standard and high-definition labels.

What connectivity options are available?

USB 2.0, Ethernet, Wi-Fi (802.11ac), Bluetooth 5.0, and WWAN for maximum flexibility.

Is the PM45 suitable for RFID applications?

Yes, with optional RFID encoder for UHF RFID labels and tags.

Andere bekeken ook

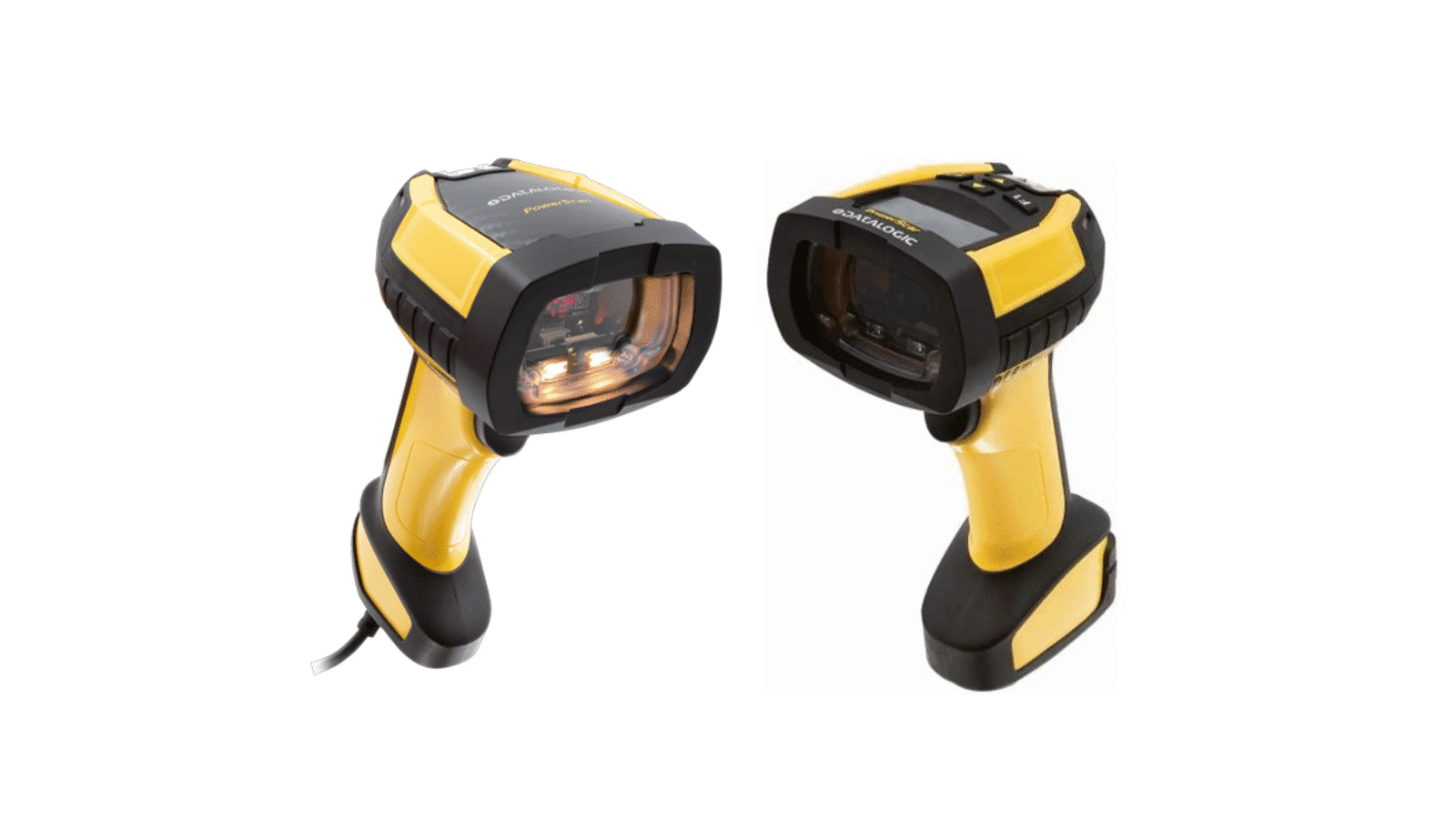

Datalogic PM9600/PD9600

Ultra-rugged construction
Drop-resistant to 2.5 meters and IP65/IP67-certified for dust and water in harsh environments.

Contactless charging
Inductive charging technology prevents dirty or damaged contacts with 80,000 scans per charge.

Flexible optics
Three optics (Standard Range, High Performance) for optimal reading of 1D/2D codes at distance.

REA JET spraysystemen

Large, Remotely Readable Markings

Combines spray mark heads into blocks for alphanumeric texts and logos up to 700 mm high, perfectly visible from a large distance.

Heat-Resistant Sprays

Processes hot-signing inks up to 1100°C and glow-resistant inks up to 650°C, ideal for the steel and aluminum industry.

High Speeds

Achieves up to 200 m/min with electric control (SRE-10) for efficient production lines.

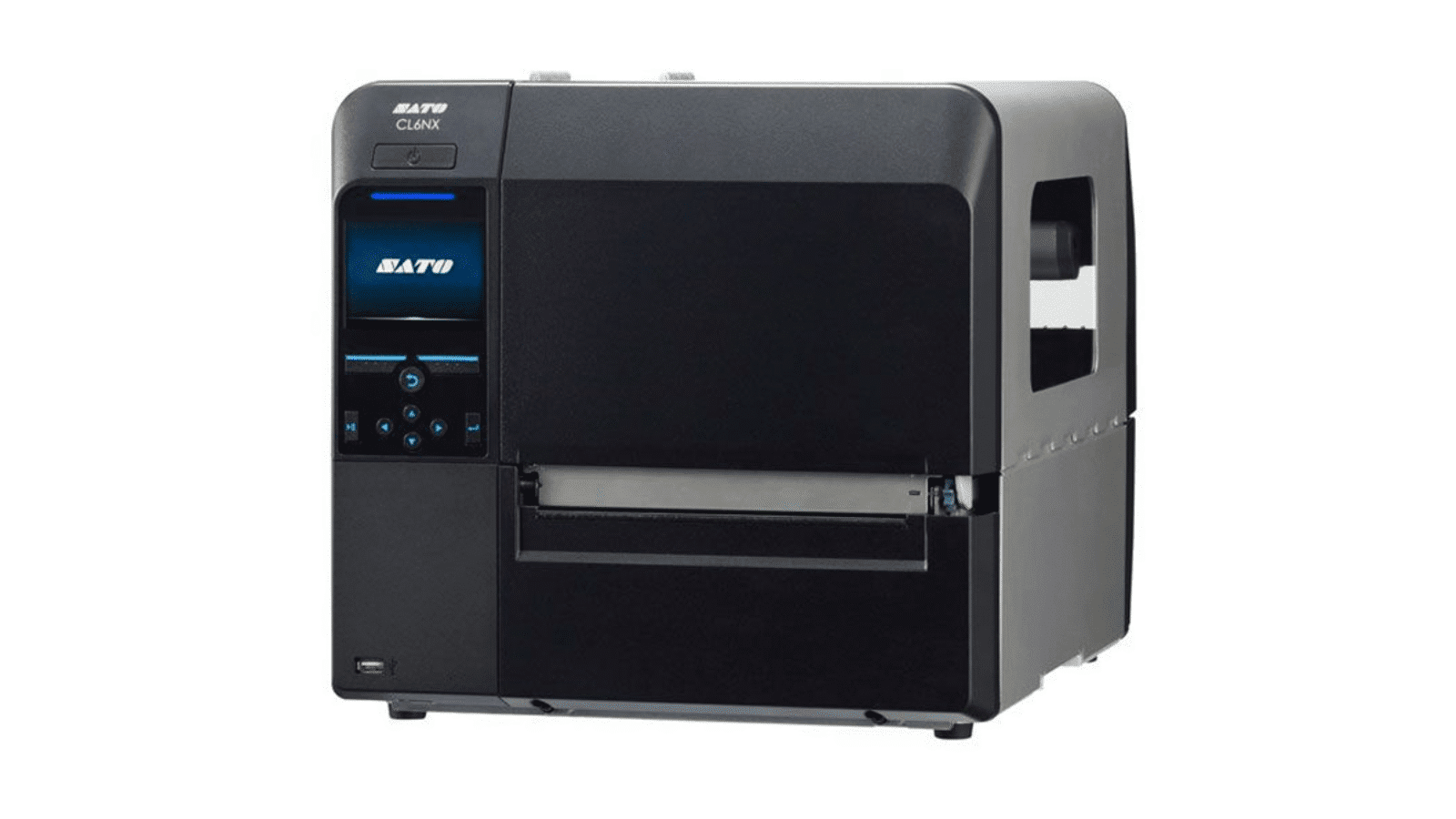

Sato CL6NX Plus
