iLumiflex Macsa
Laser TTO
Aucun consommable nécessaire
Le codage est réalisé directement sur le film d’emballage, sans rubans, encres ni remplacement de tête d’impression.
Remplacement simple du TTO
Conçu pour s’intégrer aux emplacements existants des systèmes TTO avec un minimum de modifications de ligne.
Codage laser UV permanent
Produit des codes durables et à fort contraste, résistants à la manipulation, à l’humidité et aux conditions de transport.
Product information

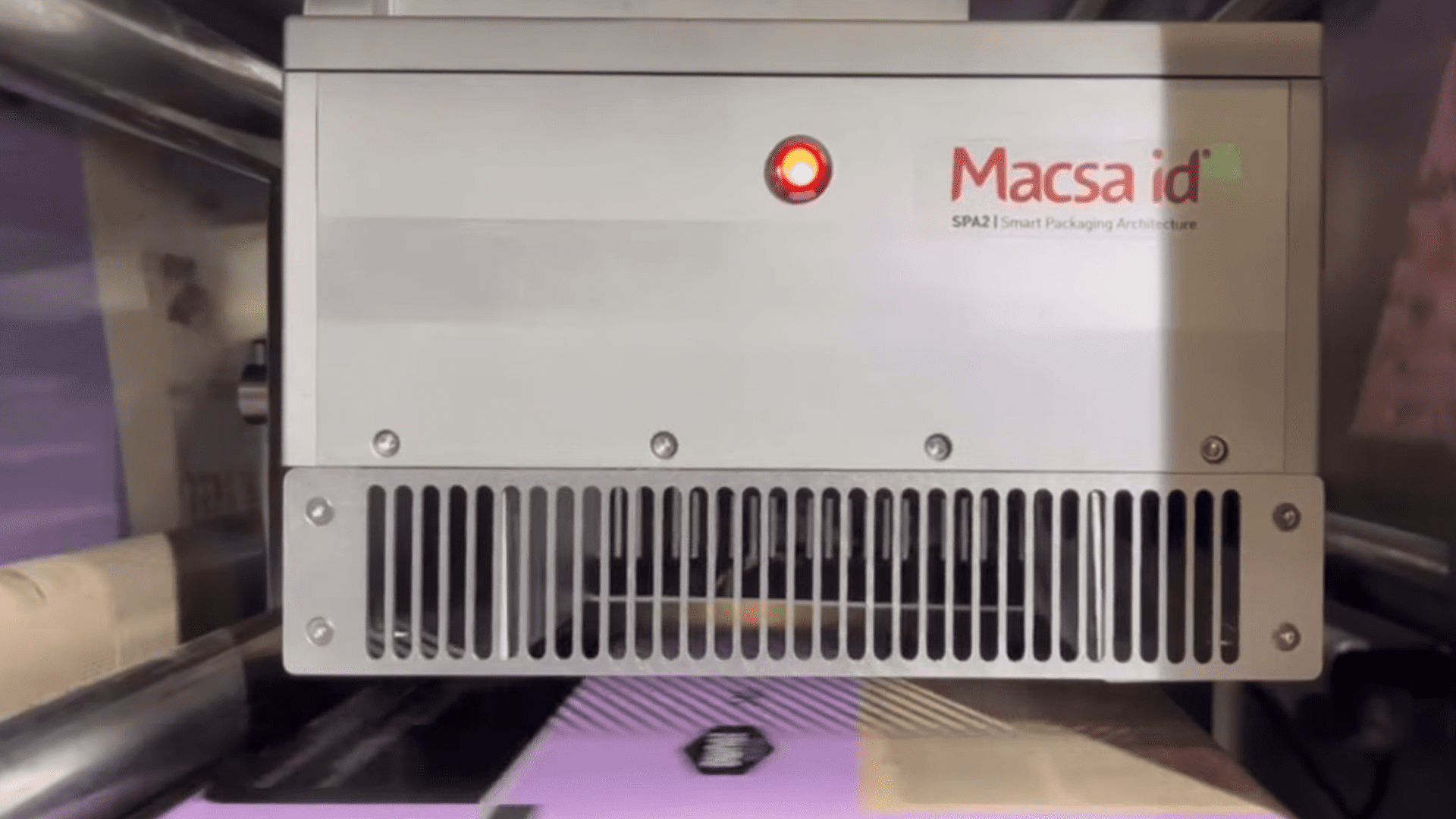

The iLumiFlex Macsa is a UV laser coding system designed for marking flexible packaging materials and films. It provides an alternative to traditional Thermal Transfer Overprint (TTO) technology by applying permanent codes directly onto packaging substrates without the need for ribbons, inks, or other consumables. This helps reduce production interruptions associated with consumable changes while lowering ongoing operating costs.
Using UV laser technology, the system creates clear and high-contrast markings on a wide range of packaging films, including sensitive and recyclable mono-material structures. The resulting codes remain legible even when exposed to moisture, oils, alcohol, and other conditions commonly encountered during distribution and product handling.
Codipack offers the iLumiFlex for applications across industries such as food and beverage, pharmaceuticals, personal care, and household products. The system supports the marking of variable data including batch numbers, expiration dates, barcodes, QR codes, and GS1 DataMatrix codes to improve product identification and traceability. In addition, the iLumiFlex is designed for straightforward integration into existing packaging lines where TTO coding systems are currently in use.
Show more
Specifications
- UV laser coding system for flexible packaging and film materials.
- Operates without ribbons, inks, or other consumables.
- UV laser source with a wavelength of 355 nm.
- Laser power up to 5 W.
- Maximum scanning speed up to 12,000 mm/s.
- Suitable for production lines running at speeds up to 300 m/min.
- Marking area of 100 × 100 mm.
- Supports permanent coding on sensitive, recyclable, and mono-material films.
- Designed for integration into existing TTO installation positions.
- Supports GS1 DataMatrix, QR codes, and GS1-128 barcodes.
- Available with TCP/IP communication and optional industrial protocols including Profinet, OPC UA, and EtherNet/IP.
Downloads
Frequently Asked Questions (FAQ)
Below you will find answers to frequently asked questions about this product, based on publicly available and verifiable information.
What is the iLumiFlex used for?
The iLumiFlex is used to apply permanent codes to flexible packaging and film materials, including expiration dates, batch codes, barcodes, QR codes, and other variable production data.
Can the iLumiFlex replace an existing TTO printer?
Yes. The system was specifically developed as an alternative to Thermal Transfer Overprint (TTO) technology and is designed to fit into existing TTO installation positions with minimal modifications to the packaging line.
Which materials can the system code on?
The iLumiFlex is designed for flexible packaging films and materials, including sensitive plastic films, recyclable mono-material structures, and various flexible packaging substrates.
What are the advantages of UV laser coding compared to traditional TTO systems?
UV laser coding eliminates the need for ribbons and other consumables, reduces maintenance requirements and production downtime, and delivers permanent, high-contrast codes that remain readable throughout the product lifecycle.
D'autres ont également consulté
eTamp coldstore
Certifié coldstore
L’eTamp Coldstore a été développé pour un fonctionnement fiable en print‑&‑apply dans des environnements froids et de congélation, avec des capacités opérationnelles jusqu’à environ –30°C.
Précision tamp électrique
L’eTamp utilise un moteur pas à pas (pas de pneumatique) pour le mouvement de tampage, permettant un placement d’étiquette précis et contrôlé et une sécurité améliorée.
Grande portée et flexibilité
Disponible en plusieurs longueurs de course (jusqu’à 850 mm), permettant l’étiquetage latéral et supérieur sur différentes hauteurs de caisses et de palettes.
BRC – certificat
Haute sécurité alimentaire
Le certificat BRC garantit des normes strictes d’hygiène et qualité en production d’emballages.
Reconnaissance internationale
Certification conforme aux standards mondiaux pour étiquettes et emballages.
Traçabilité fiable
Assure un contrôle et suivi complets dans la chaîne de production.

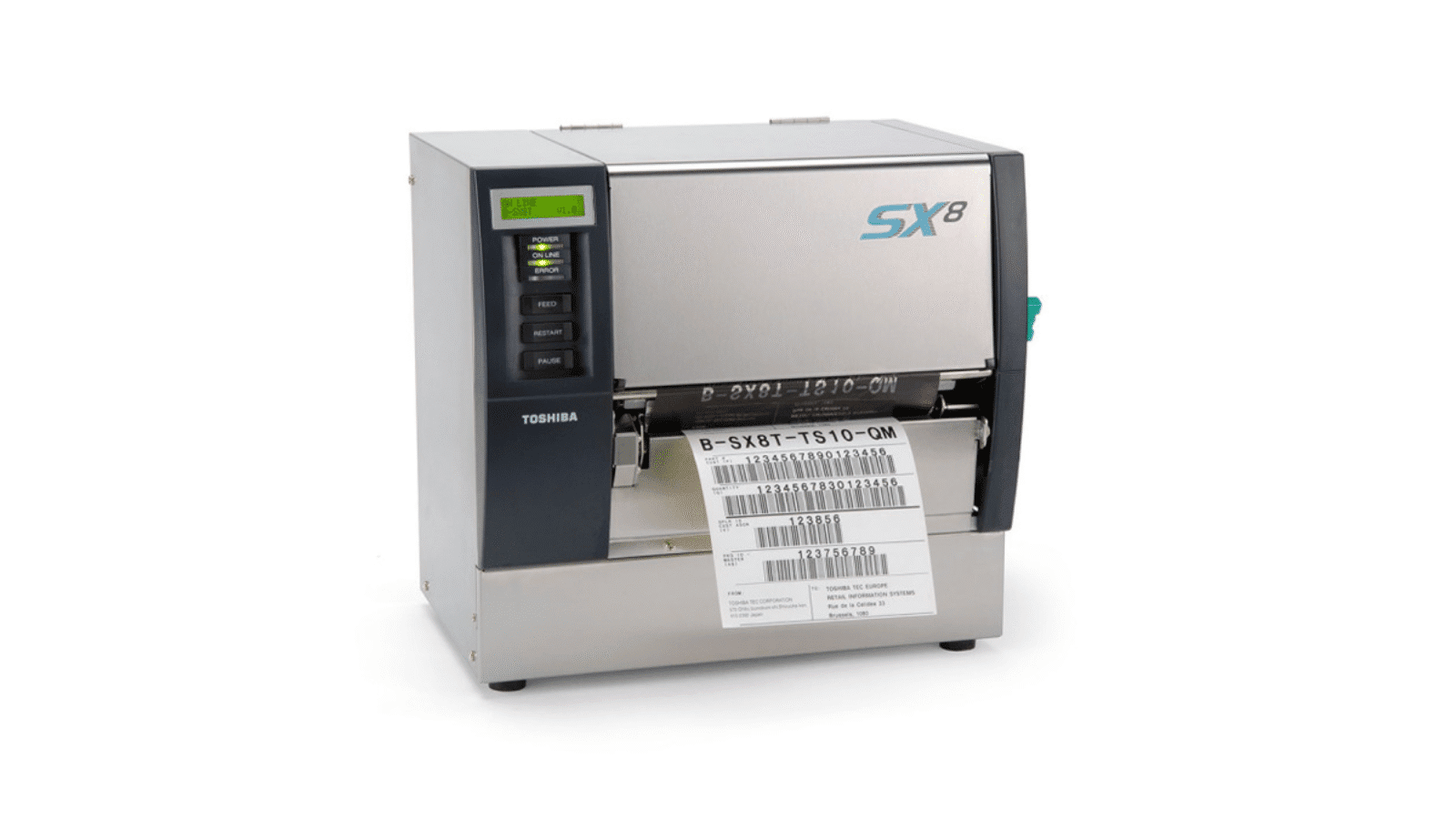

Toshiba B-SX8T
