Allen XL5000
Thermal Transfer Overprinter
Compact inline TTO printer
The Allen XL5000 is a compact inline thermal transfer printer for direct printing on flexible packaging and labels on packaging lines.
Intermittent and continuous printing
The printer can operate both intermittently and continuously, making it flexibly deployable on various packaging and labeling lines.
High print quality up to 300 dpi
With a resolution of approximately 300 dpi, the Allen XL5000 prints clear shelf life dates, batch codes, barcodes, and logos on smooth foils and labels.
Product information
The Allen XL5000 from Diagraph is an industrial thermal transfer overprinter designed for real-time printing of variable data on flexible packaging and labels. This includes shelf life dates, lot and batch codes, barcodes, and simple logos on bags, pillow packs, sachets, blister packaging, and labels. The printer is suitable for marking smooth surfaces such as paper or coated labels and plastic films like PE and PET.
The Allen XL5000 can operate in both intermittent and continuous mode, making it easily integrable on horizontal and vertical form-fill-seal machines and other packaging and labeling lines. Thanks to its compact design, it often serves as a drop-in replacement for existing TTO systems, reusing existing frames and brackets where mechanically compatible. The printer is controlled via a Diagraph controller (e.g., a:touchlite/a:touch2) and can also receive print layouts from a PC.
Show more
Specifications
Principle: thermal transfer overprinting (TTO) for variable data on flexible packaging and labels.
Applications: marking smooth surfaces such as paper/varnished labels and PE/PET foils on packaging and labeling lines.
Print modes: intermittent (IM) and continuous (CM) operation mode, switchable with conversion kit.
Intermittent print area: up to max. 53 × 80 mm.
Continuous print area: up to max. 53 × 300 mm.
Print resolution: approx. 300 dpi (12 dots per mm) for sharp codes and text.
Intermittent print speed: approx. 75–400 mm/s (depending on application).
Continuous print speed: up to approx. 450 mm/s, speeds from several to tens of m/min (depending on resolution and application).
Supported content: real-time time and date (with offset), sequential numbering, variable fields, formulas, barcodes (1D and 2D, including EAN/UPC, Code128/EAN128, GS1 DataBar, and DataMatrix).
Fonts: standard 3 internal fonts (e.g., New Gothic, Swiss 721 Bold/Roman), expandable to more fonts; mirror printing possible.
Interfaces: including RS232 and Ethernet (10/100 Mb); PC connection and control via Diagraph controllers like a:touchlite/a:touch2.
Power and environment: typical power supply 100–240 V AC, 50–60 Hz, suitable for industrial indoor environments outside explosion-hazardous zones.
Downloads
Frequently asked questions
Coding and labeling is our core business. We have 5000 customers in a wide range of industries: from the local cheese shop to multinational corporations.
For which applications is the Allen XL5000 intended?
The Allen XL5000 is developed for inline printing of variable data such as shelf life dates, batch codes, barcodes, and logos on flexible packaging and labels on packaging and labeling lines. Typical applications include bags, pillow packs, sachets, blister packaging, and paper or plastic labels.
On which materials can the Allen XL5000 print?
The printer is suitable for marking smooth surfaces, including paper or coated labels and plastic films such as PE and PET foil commonly used in the packaging industry.
Does the Allen XL5000 support both intermittent and continuous printing?
Yes, the Allen XL5000 can operate in both intermittent and continuous mode. With a suitable conversion kit, switching between these modes is possible, making the printer deployable on different types of packaging machines.
Which types of data and barcodes can the Allen XL5000 print?
The Allen XL5000 supports real-time time and date fields (with offset), sequential numbering, variable text fields, and formulas. It can also print various 1D and 2D barcodes, including Code39, EAN/UPC, Code128/EAN128, GS1 DataBar variants, and DataMatrix/GS1 DataMatrix.
Andere bekeken ook

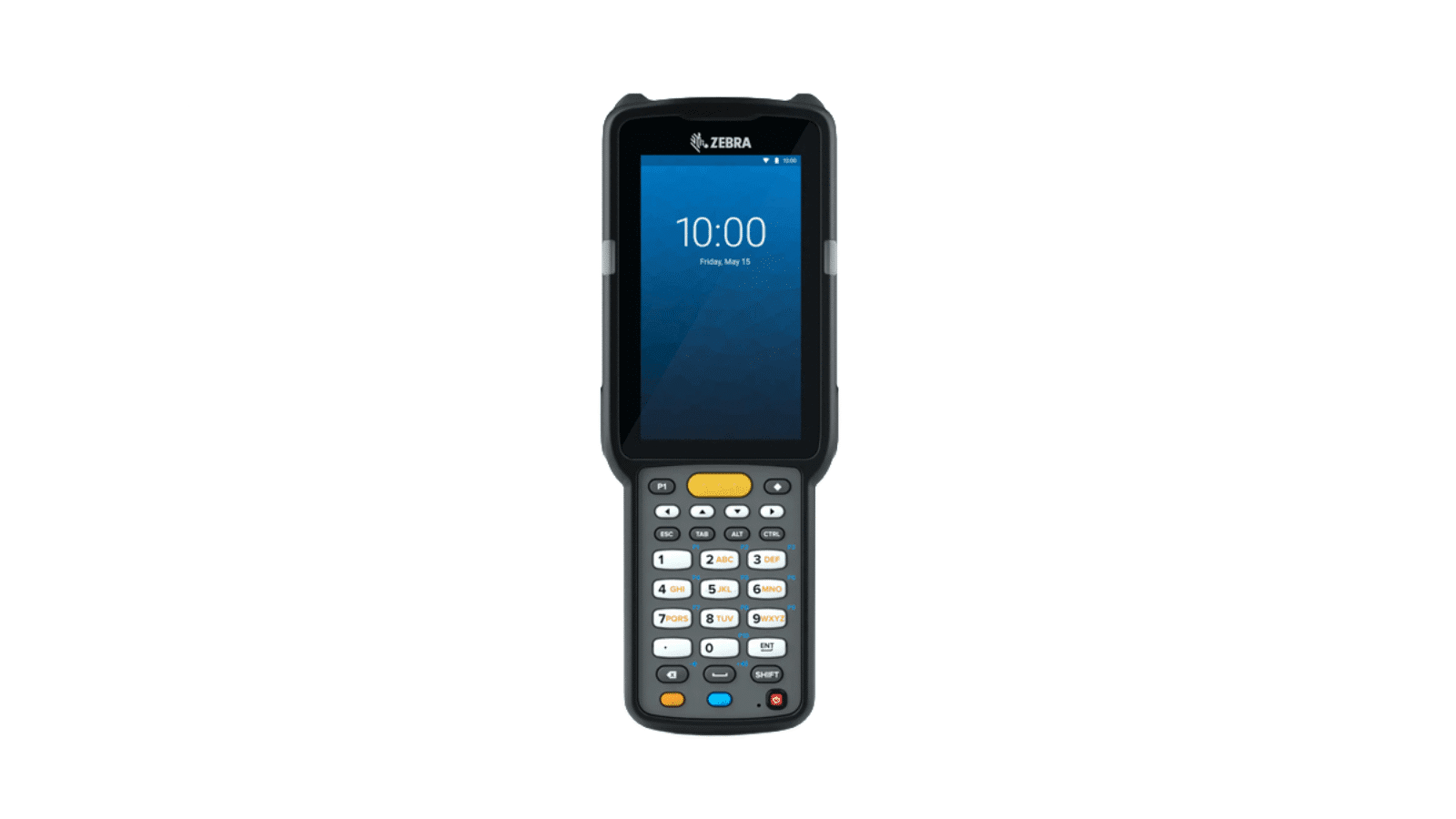

Zebra MC3300AX
